Diamond Mono Crystal UHD210
(UHD210)
Properties
- with irregular shape
- strength is lower
- brittleness is larger
Application
Suitable for grinding and other lighter load processing.
Available Size Chart
| UHD GB/T6406-1995 | ISO | FEPA | USA ANSI B74.16-1971 | JAPAN JIS4130-1988 | Theoretical Basic Size | Russia 9206-80 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grain No. | Grain Size | Grain No.Ⅰ | Grain No.Ⅱ | Grain Size | Grain No. | Grain Size | Grain No. | Grain Size | Grain No. | Grain Size | Grain No. | Grain Size | Grain No. | Grain Size |
| 40/50 | 425/300 | 427 | 40/50 | 425/300 | B/427 | 355/300 | 40/50 | 425/300 | 40/50 | 425/300 | 0.015 | 0.378 | 500/400 | 500/400 |
| 50/60 | 300/250 | 301 | 50/60 | 300/250 | B/301 | 300/250 | 50/60 | 300/250 | 50/60 | 300/250 | 0.011 | 0.288 | 400/315 | 400/315 |
| 60/80 | 250/180 | 252 | 60/80 | 250/180 | B/252 | 250/180 | 60/80 | 250/180 | 60/80 | 250/180 | 0.009 | 0.226 | 250/200 | 250/200 |
| 80/100 | 180/150 | 181 | 80/100 | 180/150 | B/181 | 180/150 | 80/100 | 180/150 | 80/100 | 180/150 | 0.0069 | 0.174 | 200/160 | 200/160 |
| 100/120 | 150/125 | 151 | 100/120 | 150/125 | B/151 | 150/125 | 100/120 | 150/125 | 100/120 | 150/125 | 0.0058 | 0.148 | 160/125 | 160/125 |
| 120/140 | 125/106 | 126 | 120/140 | 125/106 | B/126 | 125/106 | 120/140 | 125/106 | 120/140 | 125/106 | 0.0048 | 0.123 | 125/100 | 125/100 |
| 140/170 | 106/90 | 107 | 140/170 | 106/190 | B/107 | 106/190 | 140/170 | 106/190 | 140/170 | 106/190 | 0.0041 | 0.103 | 100/80 | 100/80 |
| 170/200 | 90/75 | 91 | 170/200 | 90/75 | B/91 | 90/75 | 170/200 | 90/75 | 170/200 | 90/75 | 0.0034 | 0.086 | 80/63 | 80/63 |
| 200/230 | 75/63 | 76 | 200/230 | 75/63 | B/76 | 75/63 | 200/230 | 75/63 | 200/230 | 75/63 | 0.0030 | 0.075 | 63/50 | 63/50 |
| 230/270 | 63/53 | 64 | 230/270 | 63/53 | B/64 | 63/53 | 230/270 | 63/53 | 230/270 | 63/53 | 0.0026 | 0.066 | 50/40 | 50/40 |
| 270/325 | 53/45 | 54 | 270/325 | 53/45 | B/54 | 53/45 | 270/325 | 53/45 | 270/325 | 53/45 | 0.0022 | 0.057 | ||
| 325/400 | 45/38 | 46 | 325/400 | 45/38 | B/45 | 45/38 | 325/400 | 45/38 | 325/400 | 45/38 | 0.0019 | 0.048 | ||
Customization Service & Expert Advice
We offer customer-specific segment geometries, catering for every tooling concept and application. We offer the comprehensive technical literature and expert advice from our application-engineering team.
Quality Certification
The following is the certificate of our company, if you need to contact customer service.
Advanced Testing Equipment
Technical Literature:

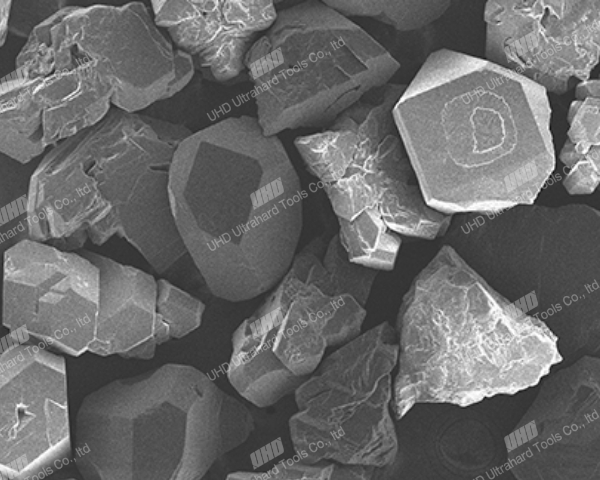

- SEM Graph

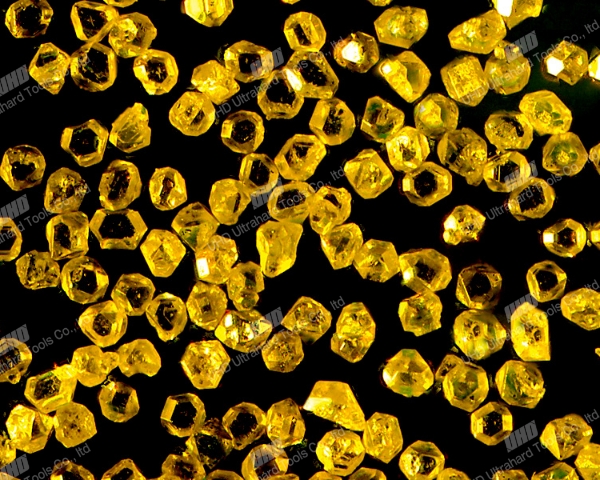

- Microscope Graph
- ICP test report
- TI/TTI Report
